Elbow 90°

Streamlining Fluid Systems with Aseptconn’s Precision 90° Elbow Tubes

In the rigorous and demanding settings of the pharmaceutical, biopharmaceutical, food and drink, and chemical industries, every component's design and quality can significantly impact the overall system's efficiency and compliance. Aseptconn's 90° elbow tube “DIN 11865 Row C (ASME BPE) / 316L / DT-4.1.1-4” stands as a beacon of precision engineering, tailored to meet these industries' exacting standards. As the only product in its 90° elbow tube range, it exemplifies Aseptconn's commitment to delivering high-quality, reliable solutions that industry professionals trust.

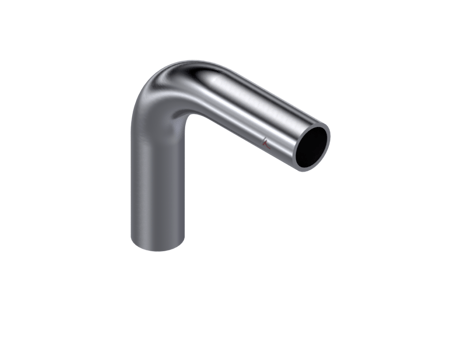

Spotlight on the 90° Elbow Tube “DIN 11865 Row C (ASME BPE) / 316L / DT-4.1.1-4”

Exceptional Material Quality

Crafted from 316L stainless steel, renowned for its exceptional corrosion resistance, durability, and hygiene, the 90° elbow tube “DIN 11865 Row C (ASME BPE) / 316L / DT-4.1.1-4” is ideally suited for critical applications where material integrity is paramount. For specific requirements, 1.4435 BN2 material is also available, ensuring versatility without compromising quality.


Optimal Surface Quality

  • Electropolished (SF4): Offering an internal surface roughness of ≤ 0.38 µm, the electropolished finish guarantees an ultra-clean internal surface, minimizing contamination risks and simplifying cleaning processes.
  • Bright Finished (SF1): With an internal surface roughness of ≤ 0.51 µm, this finish strikes a balance between quality and cost-effectiveness while maintaining high standards of cleanliness.

With an outer surface Ra value of ≤ 1,00 µm, these finishes ensure the tube’s comprehensive quality, inside and out, adhering to the highest industry standards.


Diverse Applications

The 90° elbow tube finds its place in various critical sectors, including pharma & biotech, food and drink, and chemical industries. Its design caters to the stringent requirements of these fields, ensuring seamless integration and performance in systems where precision is critical.


Customization and Compliance

Aligning with ASME BPE standards, this elbow tube is accompanied by an acceptance test certificate according to EN 10204-3.1, symbolizing its adherence to international quality and safety benchmarks. Moreover, Aseptconn offers special dimensions and materials upon request, catering to unique operational needs and ensuring a perfect fit for any system.


Introducing Additional Elbow 90° Models

With the 90° elbow tube “DIN 11865 Row C (ASME BPE) / 316L / DT-4.1.1-4” model serving as a hallmark of Aseptconn's commitment to excellence, the inclusion of two additional 90° elbow tubes broadens the spectrum of solutions available for diverse industry requirements. These models are designed with specific standards and materials in mind, ensuring that all applications find their match in quality and compliance.


90° Elbow Tube "DIN 11865 Row A (DIN DN) / 1.4435"

Adhering to DIN 11865 and tailored for Tubing DIN 11866 Row A (DIN), the 90° elbow tube “DIN 11865 Row A (DIN DN) / 1.4435” is crafted from 1.4435 BN2 stainless steel, a material celebrated for its low ferrite content (Fe≤0.5%) and compliance with EN 10088-1. This model is particularly suited for applications requiring high corrosion resistance and durability.


90° Elbow Tube "DIN 11865 Row B (ISO DN) / 1.4435 BN2"

The 90° Elbow Tube “DIN 11865 Row B (ISO DN) / 1.4435 BN2” model aligns with DIN 11865 for Tubing DIN 11866 Row B (ISO), utilizing the same 1.4435 BN2 stainless steel for exceptional corrosion resistance. Its specifications cater to global standards, ensuring a versatile fit for systems worldwide. While specific surface quality details are to be confirmed, the high-grade material promises a solution that does not compromise on performance or compliance.


Conclusion: A Comprehensive Suite of Elbow 90° Solutions

Aseptconn’s offerings in the 90° elbow tube category, led by the DIN 11865 Row C (ASME BPE) / 316L / DT-4.1.1-4 model and complemented by the Row A (DIN DN) and Row B (ISO DN) variants, underscore the company's dedication to delivering top-tier fluid handling components. With a focus on material integrity, surface quality, and adherence to international standards, these products ensure that every application, from pharmaceuticals and biotechnology to food processing and chemical manufacturing, achieves unparalleled system efficiency and compliance.

Aseptconn remains at the forefront of innovation in industrial components, offering a range of solutions that meet the evolving needs of critical industries with precision, reliability, and customization options. Whether your systems require the stringent standards of ASME BPE or specific compliance with DIN or ISO norms, Aseptconn's 90° elbow tubes offer the quality and versatility needed to enhance operational excellence.
